Introduction of Jaw Crusher:

Jaw crusher is necessary equipment for ore crushing. Jaw crusher mainly applies for primary and crude crushing of all kinds of hard rocks and block materials. Jaw crusher has been widely used in the fields of building materials, metallurgy, ore, water conservancy, construction, and hydropower, etc. Jaw crusher has great advantage on structure and performance. It is a very popular device on the market.

Specification of Jaw Crusher

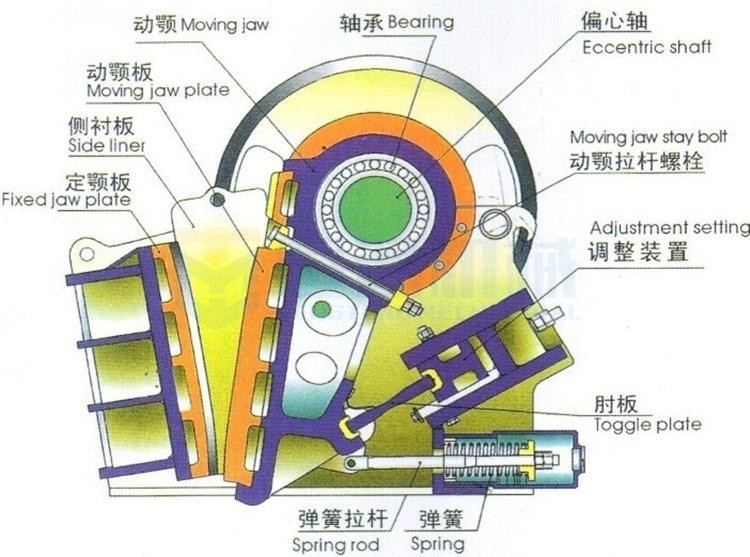

Structure of jaw crusher:

1. Jaw crusher use advanced manufacturing technology; adopt high wear-resistant materials.

2. The more advanced moving hub assembly makes jaw crusher more durable. The moving hub assembly is made of high quality steel castings and is driven by two large cast steel flywheels. In addition, heavy eccentric shafts are also processed using forged billets. All these make jaw crusher have superior reliability.

3. The bearing seat adopts an integral cast steel structure, and the integral cast steel bearing seat can ensure it perfect fitting for the crushing frame, and greatly enhanced the radial strength of the bearing seat. However, the split bearing does not have this advantage.

4. Adopting finite element analysis technology, jaw crusher has higher strength.

5. The crushing chamber adopts symmetrical “V” shape structure; so that the actual feed port width is consistent with the nominal feed port width.

6. Discharging outlet adjustment is faster and more convenient. Jaw crusher is equipped with wedge discharge adjusting device. This device is simpler, safer and faster than the old gasket adjusting device.

7. Larger bearing specification and higher bearing capacity. Jaw crushers are equipped with larger and more durable eccentric shaft bearings than other crushers of the same size, the higher bearing capacity and effective labyrinth seals greatly extend the bearing life.

8. Jaw crusher adopts tooth guard plate, increasing the effective length of jaw plate, higher yield.

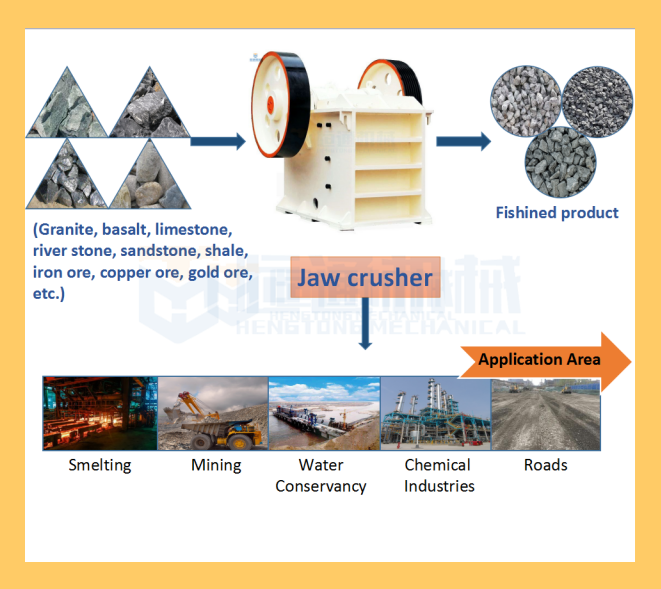

Aplication

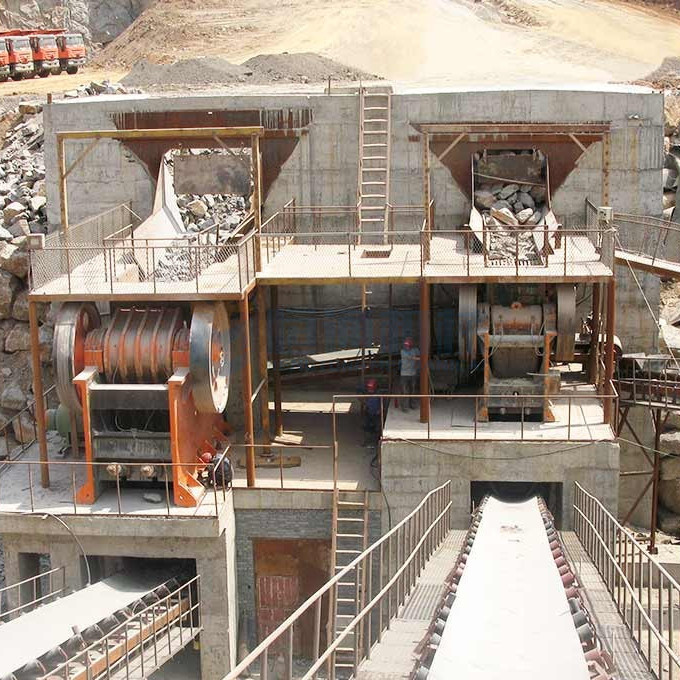

Customer site

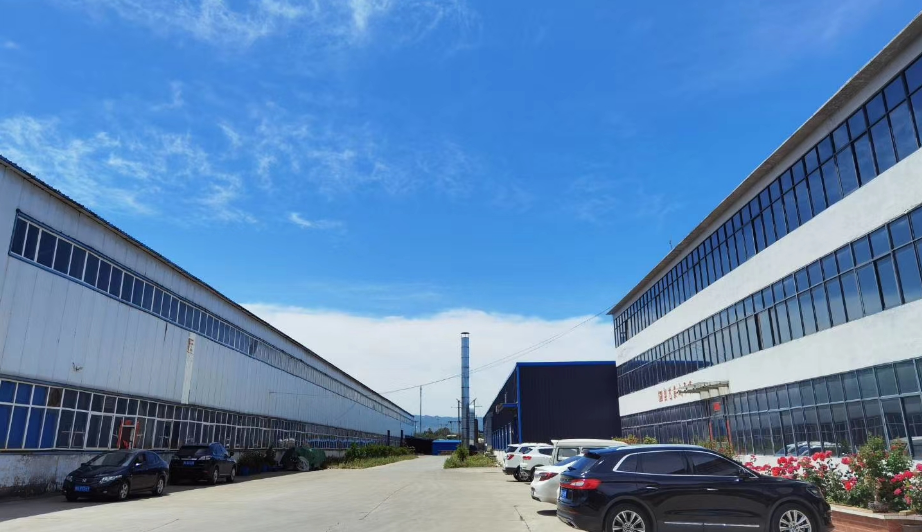

GONGYI HENGTONG MACHIENRY FACTORY

Add: Huangshan Road,Gongyi City,Zhengzhou City,Henan Province,P.R.China

Gongyi Zhanjie Hengtong Machinery Factory was established in 2001. The factory has been established for 20 years. We are willing to work together with colleagues from all walks of life to seek common development and continue to provide products and services to new and old customers. Our factory mainly deals in sand making machines, crushers, grinder, shredders, etc. There are 200 employees. Our factory respects promises, abides by contracts, and guarantees product quality, which has won the trust of our customers. The factory makes every effort to follow the needs of customers and continue to carry out product innovation and service improvement.
